DISCONNECT ENCLOSURES

Our disconnect enclosures give system integrators several cost-effective, multi-pole disconnect options for PV systems. Disconnect enclosures are used to disconnect inverter input circuits. Covering a range of configurations, disconnect enclosures can service a single inverter with one input, multiple inputs, or multiple inverters and help meet NEC disconnect and fuse servicing requirements.

PRODUCT FEATURES

 Listed to UL-1741

 Up to 16 input
circuits

 Rated for 1000 or
1500 VDC

275, 320, 400, and
600 Amp load
break disconnects

75/90C AI/Cu
input/output
terminals

NEMA-3R, 4 & 4X
enclosures

Rated for
continuous duty

AVAILABLE OPTIONS

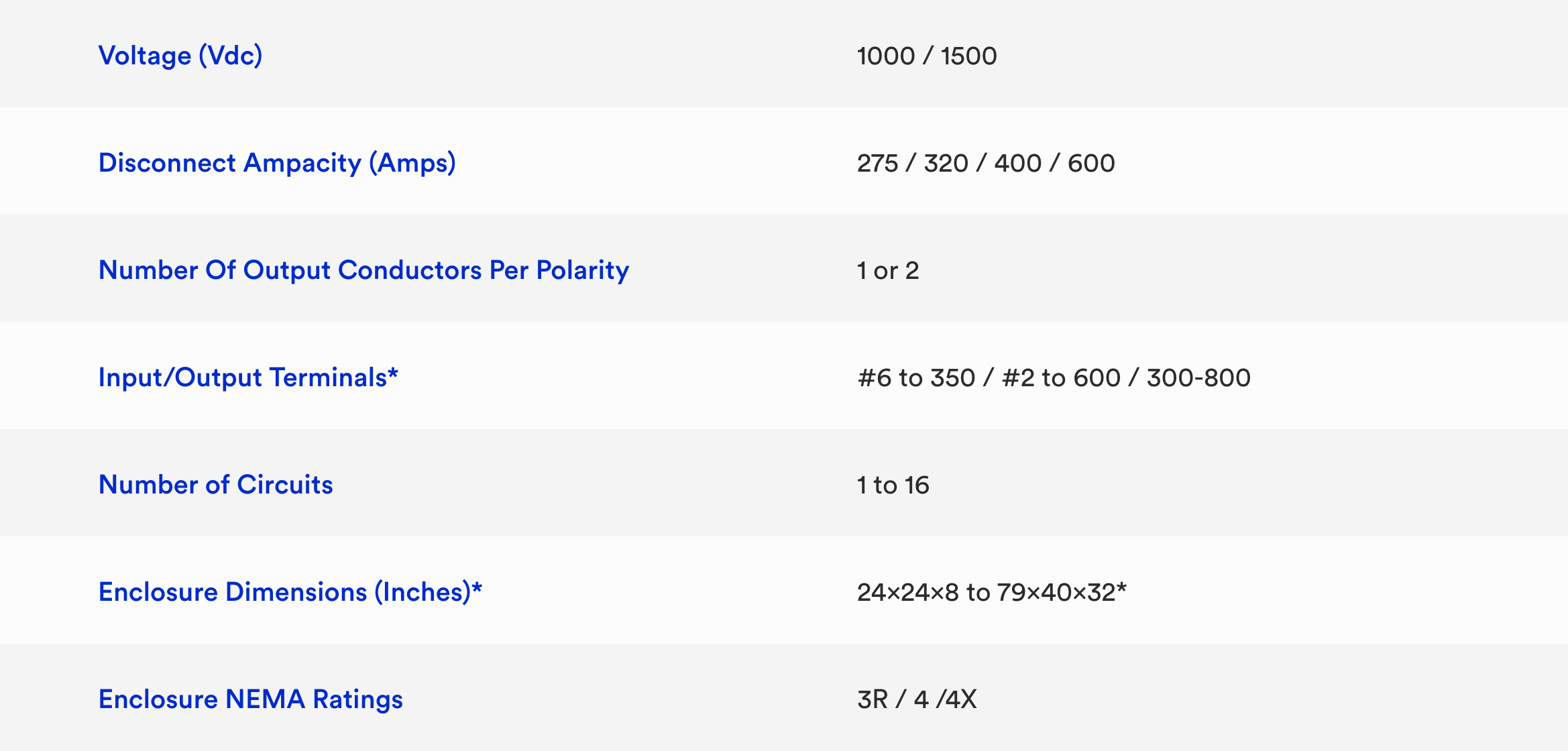

SPECIFICATIONS

*Other options available upon request. Please note dimensions and weight may vary for any custom solutions. Contact us for details.
