WIRE
SOLUTIONS

Reduce time on site with pre-fabricated and personalized
wire solutions. Flexibility at scale allows for customization
without sacrificing quality and timeliness.

WIRE
SOLUTIONS

Reduce time on site with pre-fabricated and personalized
wire solutions. Flexibility at scale allows for customization
without sacrificing quality and timeliness.

LESS LABOR & TIME ON SITE

LESS LABOR & TIME ON SITE

Pre-fabricated wire allows for fast plug-and-play connections in the field

REDUCE RISK

REDUCE RISK

Site-specific designs allow us to
problem solve up front, making projects
more predictable

FLEXIBILITY AT SCALE

FLEXIBILITY AT SCALE

Customization without sacrificing quality and
timeliness

WIRE SOLUTIONS

WIRE HARNESS

Harness design customized per project specs. Number of input and branches is customizable.

BI-FACIAL & CRYSTALLINE MODULES

THIN FILM MODULES

Photovoltaic 2kV Conductors Standard

  • UL listing: UL 9703
  • Voltage Rating: 600, 1000, 1800
  • Wire Standing: 7, 19, or 40 strands
  • Max. Harness Trunk Current: 304A
  • Temperature Rating: -40°C to 90°C
  • Design: Harness design customized per project specs. Number of inputs and branches is customizable.
  • PV Wire Gauges Available: 6, 8, 10, and 12 AWG
  • Material: Cooper
  • Max. Inline Fuse Size: 32A
  • Sunlight resistant
  • Oil & gasoline resistant, category II

Photovoltaic 2kV Conductors Standard

  • UL listing: UL 9703
  • Voltage Rating: 600, 1000, 1800
  • Wire Standing: 7, 19, or 40 strands
  • Max. Harness Trunk Current: 304A
  • Temperature Rating: -40°C to 90°C
  • Design: Harness design customized per project specs. Number of inputs and branches is customizable.
  • PV Wire Gauges Available: 6, 8, 10, and 12 AWG
  • Material: Cooper
  • Max. Inline Fuse Size: 32A
  • Sunlight resistant
  • Oil & gasoline resistant, category II

Options

  • Terminated with MC4, PV4S, HV/UTX, or any certified PV connector
  • Blunt cut for cage clamp or screw terminal
  • Multiple colors available
  • VW-1 flame rating optional

Overmolds

  • “X”, “Y”, “T”, and fuse overmolds
  • 2 to 32 amp crimp barrel fuses
  • 1000 and 1500 VDC
  • Sonic welded connections

SOURCE CIRCUIT
CONDUCTOR

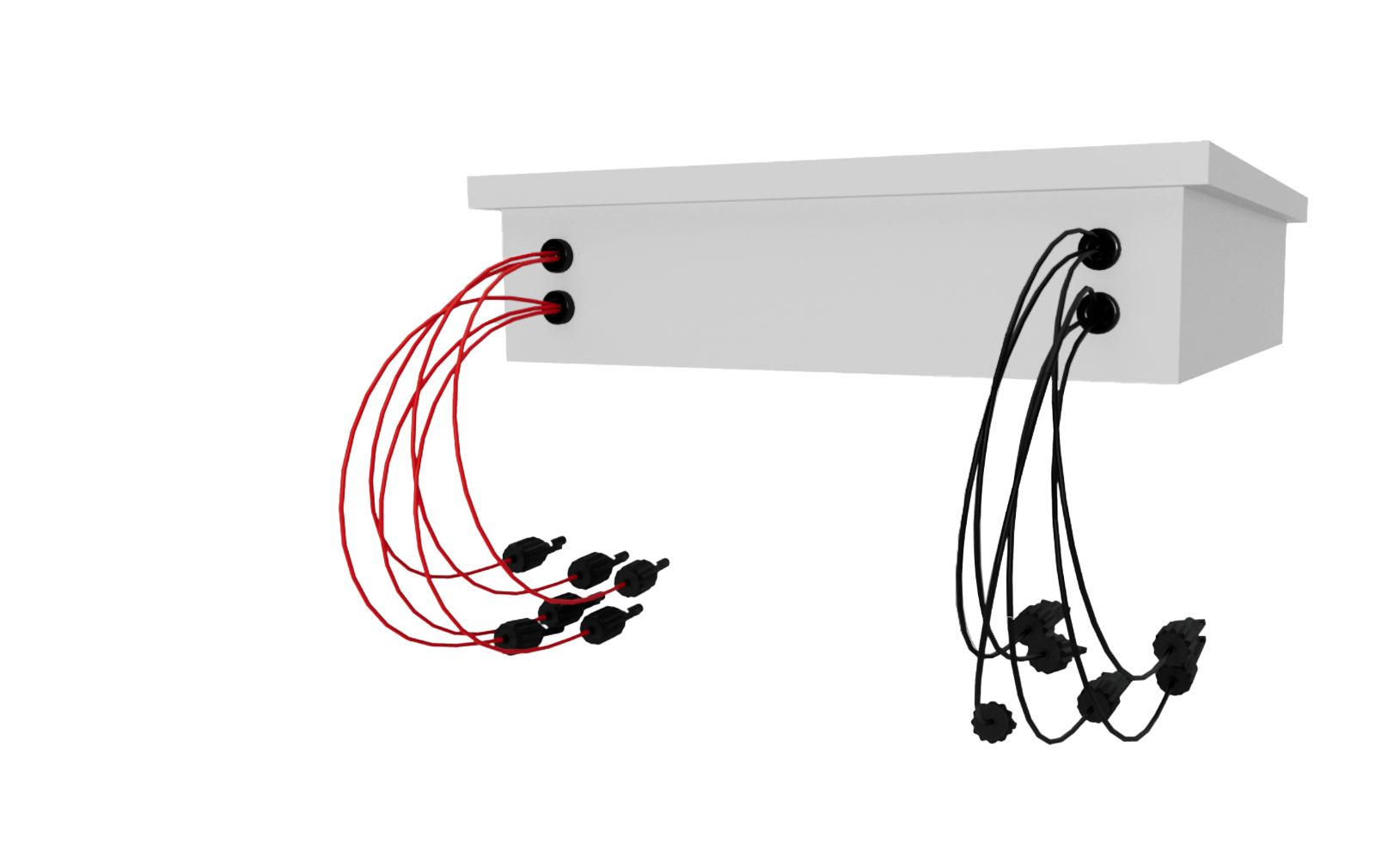

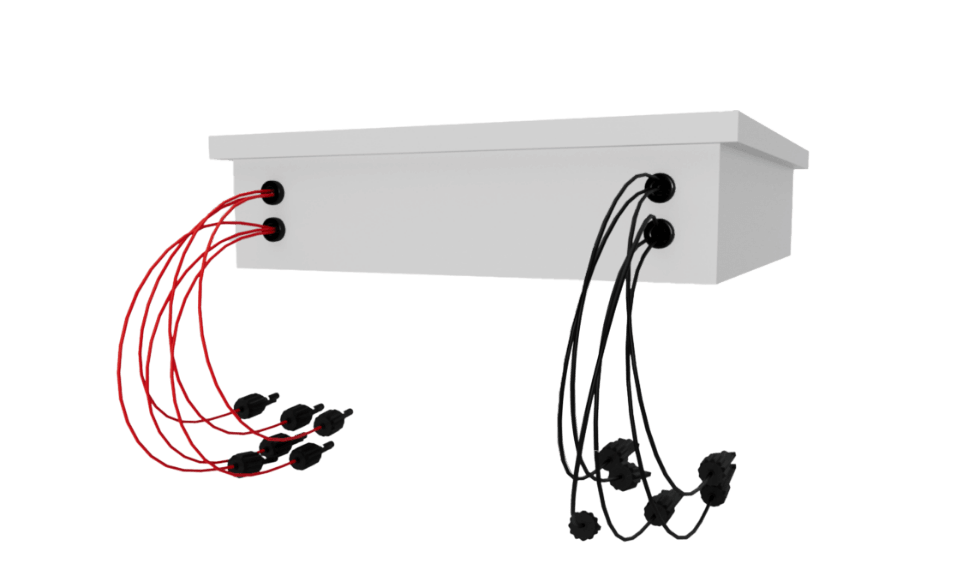

WHIPS

Save time and money with pre-installed whips that arrive attached to the box, making in-field connections faster and easier

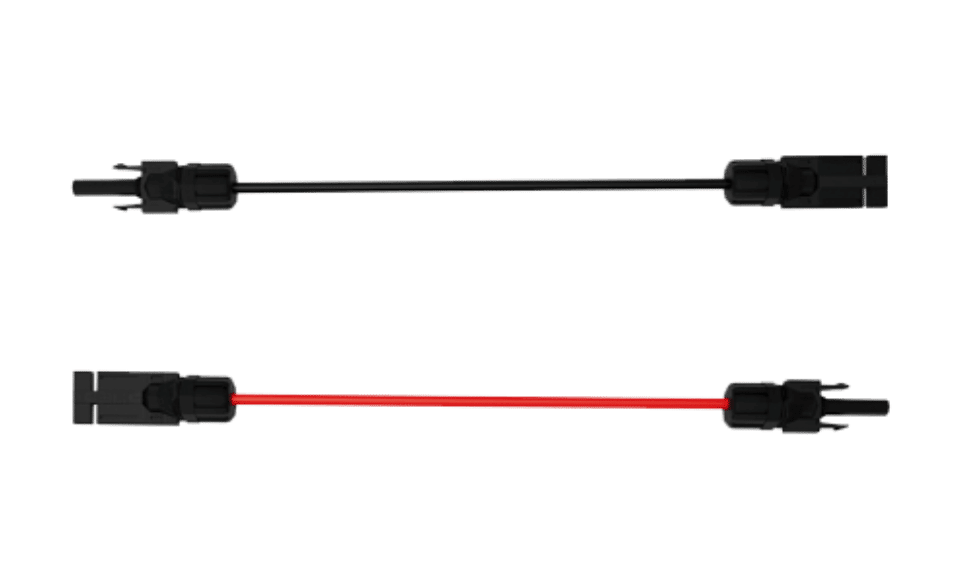

JUMPERS

FAST PLUG-AND-PLAY
CONNECTIONS IN
THE FIELD

Our solutions address project complexity up front—saving time
downstream, reducing risk, and making projects more predictable

VIEW OUR PROJECTS
